Input voltage: 380±10% (three-phase) 50HZ

Input power: 2x250KVA

Secondary Voltage: 11.3V

Maximum short circuit current: 50KA

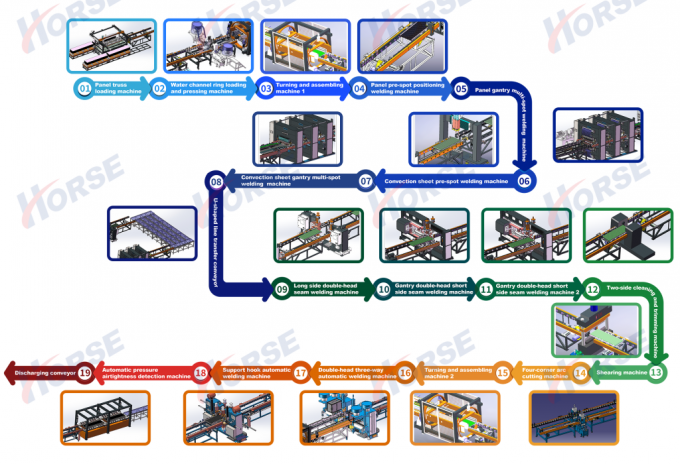

Discharging conveyor: SSJ-0-0

Automatic pressure airtightness detection machine: JCJ-0-0

Support hook automatic welding machine: 2*MD40-4C

Double-head three-way automatic welding machine: 2*MD80-2C

PLC control system: used to control all aspects of the production line.

MES System: Manufacturing execution system for production management and scheduling.

Fin Thicknessea: Customizable

On-line inspection system: real-time monitoring of quality in the production process

Power: 12 * 50 KVA

AC power supplies: 12 sets

Seam welding speed: 0-2.8 m/min

Grabbing method: Cylinder clamps material, gripper turns 90° to place on rack

Capacity config: 1000m/10h

Operators: 2-3 people

Equipment area: 60m*10m（L*W)

Equipment power distribution: 1600KVA (The actual total power used is about 1000KVA)
